drawing of 3x2x1.5m full fiber trolley resistance furnace

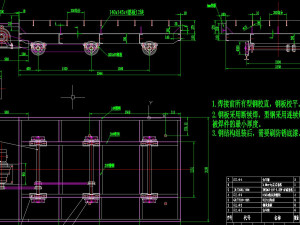

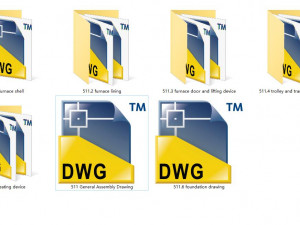

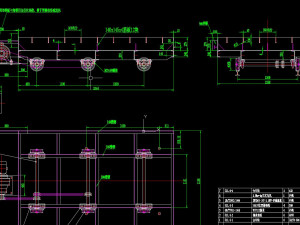

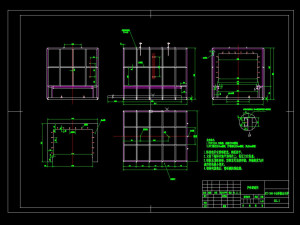

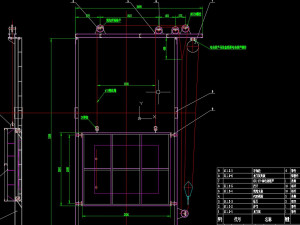

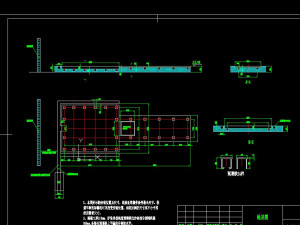

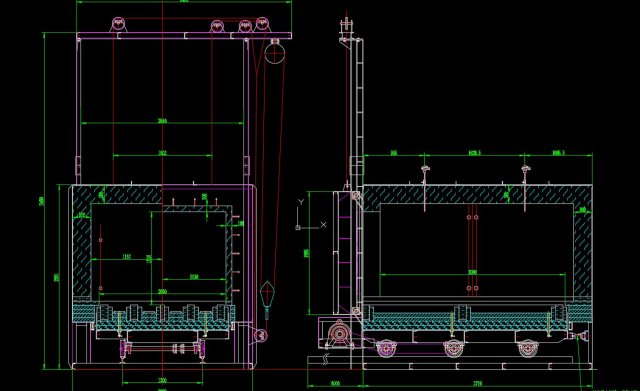

drawing of 3x2x1.5m full fiber trolley type resistance furnace in dwg format. this type of furnace is a periodic operation type resistance furnace. it is a special equipment for quenching, annealing, normalizing and tempering of metal products in natural atmosphere, heating, heat preservation and cooling with furnace. it can also be used for tempering and other heat treatment of other metal materials or products. this type of furnace is combined with the electric furnace temperature control cabinet to realize automatic or manual control of the working temperature and mechanical action of the electric furnace. the working conditions of the equipment are 380v ± 10%; 50 hz, three-phase ac power supply. ******t temperature: 5 ~ 50 ℃, relative humidity < 80%. there is no conductive dust, explosive gas and corrosive gas seriously damaging metal and insulation around the equipment. there is no vibration and turbulence. Для печати: Нет
